60 kW – 240 kW DC Chargers
Sonic Charging For Highways And Logistics

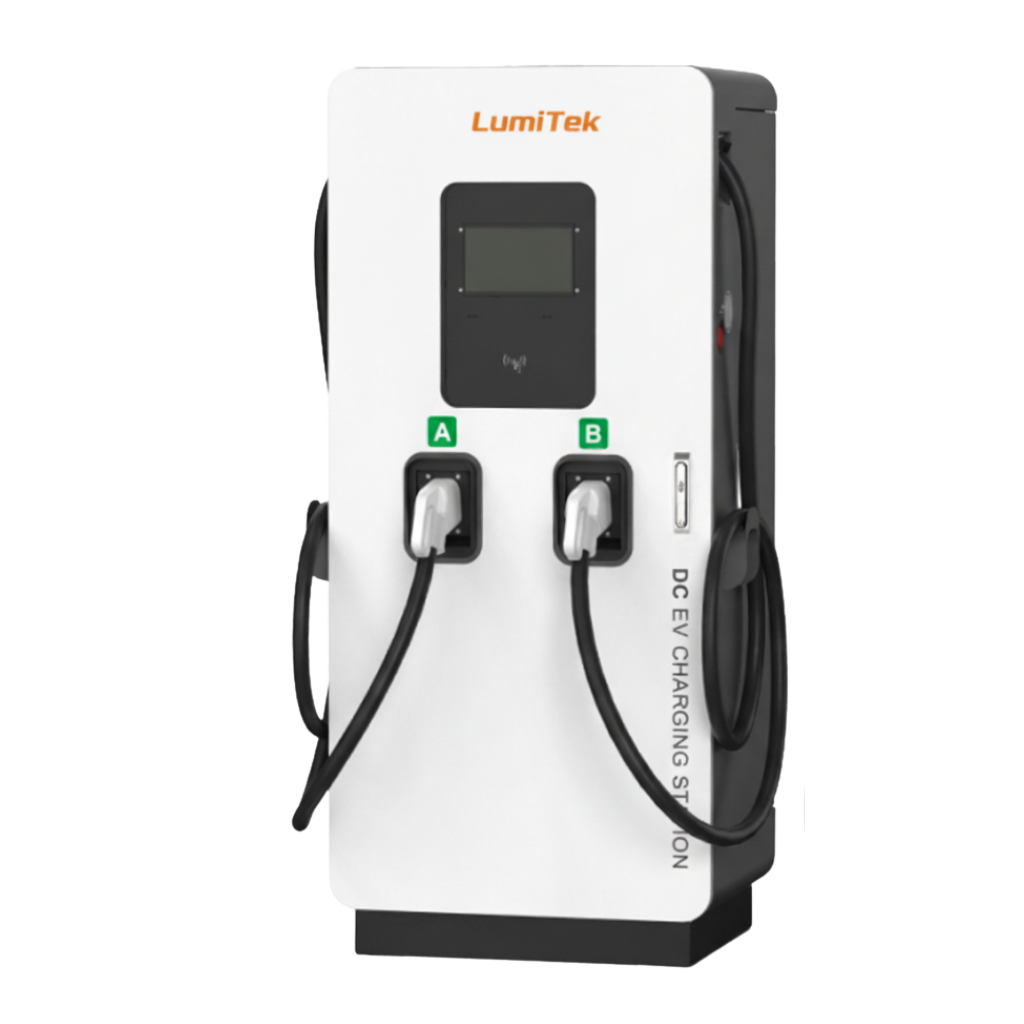

The 80 kW to 240 kW series represents LumiTek’s most powerful DC lineup, designed as robust floor-standing cabinets with optional swing-arm designs for cable management. All models use a standardized cabinet frame for easier deployment and servicing, while supporting both single- and dual-gun CCS2 configurations.
IP54 Weatherproof
Heavy Duty
Feature Highlights
Every detail engineered for the perfect charging experience
Smart Connectivity
- LumiTek SECC and DC controller with OCPP 1.6J
- Ethernet, Wi Fi, and 4G communication
- Intelligent load distribution for dual gun units
- Remote monitoring and fault diagnostics
- Remote software and firmware upgrades
Universal Compatibility
- Single or dual CCS2 high power guns
- Rapid charging for long range cars, vans, buses, and fleets
- Scalable power modules from 80 to 240 kW
- Suitable for highways and logistics corridors
- Also fits ride hailing hubs, OEM stations, and public networks
Built for Durability
- Overload, surge, leakage, thermal, and short circuit protection
- Heavy duty cabinet with standard or swing arm design
- Built for continuous commercial use in demanding environments
- Emergency stop for added safety
- IK08 impact resistance rating
- IP54 dust and water protection
Charger Core
Technical Specifications
| Model Series | 60 kW - 240 kW DC Charger |
|---|---|
| Power | 60kW | 80kW | 120kW | 150kW | 160kW | 180kW | 240kW |
| Connector | CHAdeMO | CCS2 |
| Connection Number | Double Gun 60kW 80kW | 120kW | 150kW | 160kW |180kW | 240kW |
| Input Voltage | AC380V-415V, 3P+N+PE |
| Frequencу | 50 |60HZ |
| Humidness | ≤95% |
| Output Voltage | 50V-1000V DC |
| Power Factor | ≥0.99 |
| Peak Efficiency | 95.5% |
| Voltage Accuracy | ≤0.5% |
| User Interface | Led Indicator Green | Yellow | Red 7.0 Inch LCD Display RFID Mifare ISO, IEC14443 A |
| Emergency Stop Button | Yes |
| Charge Mode | Plug & Charge, RFID, APP |
| Communication Protocol | OCPP 1.6J or other |
| Communication | Ethernet | 4G |
| Electrical Protection | Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
| Energy Meter | Yes |
| Ingress Protection | IP54 |
| Impact Protection | IK10 (Screen IK08) |
| Operating Temperature | -35°C to +50°C |
| Operating Humidity | 5% to 95% |
| Certificate Standard | EN/IEC 61851-1:2019, IEC 61851-1:2017, EN 61851-23:2014, IEC 61851-23:2014, EN 61851-24:2014, IEC 61851-24:2014, EN/IEC 61000-6-2:2019, EN/IEC 61000-6-4:2019, EN/IEC 61851-21-2:2021 |
| Certificate | TUV SUD, CB, UKCA |
| Work altitude | <2000m |
| Outer dimension | with swing arm H:2000mm×L:850mm×W:600mm without swing arm H:1800mm×L:850mm×W:600mm |
| Installation mode | Floor mounting |
| Soft startup time | 3-8sec |
| External package | Wooden Case |
